GaragePro OBD Scanner With Full Scanning (Engine, ABS, SRS, EPS, BCM)
Android / Annual
Inclusive of GST
Choose your plan
Android and iOS name the scanner unit, not the app. Both read exactly the same things, at the same price. The iOS unit pairs with Android phones and iPhones; the Android unit pairs with Android only.
Special functions are on Advanced only.
Cash on delivery available · EMI on cards above ₹5,000
- 1-year replacement warranty
- 7-day returns
- GST invoice with GSTIN
COMPATIBILITY DETAIL FOR YOUR VEHICLE
Check make, model and year in the buy box and this fills in with the modules, the special functions and any known limitation for that exact vehicle.

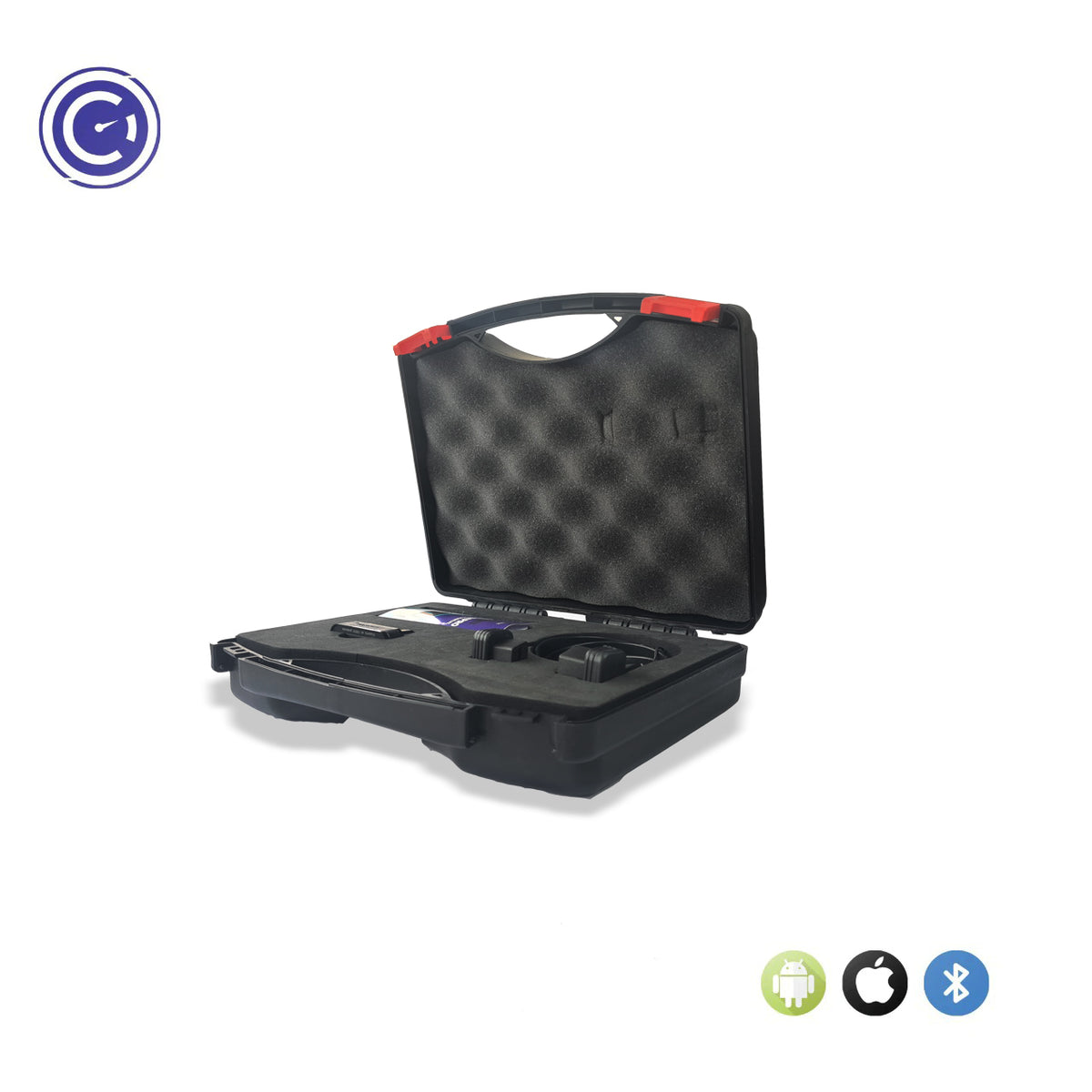

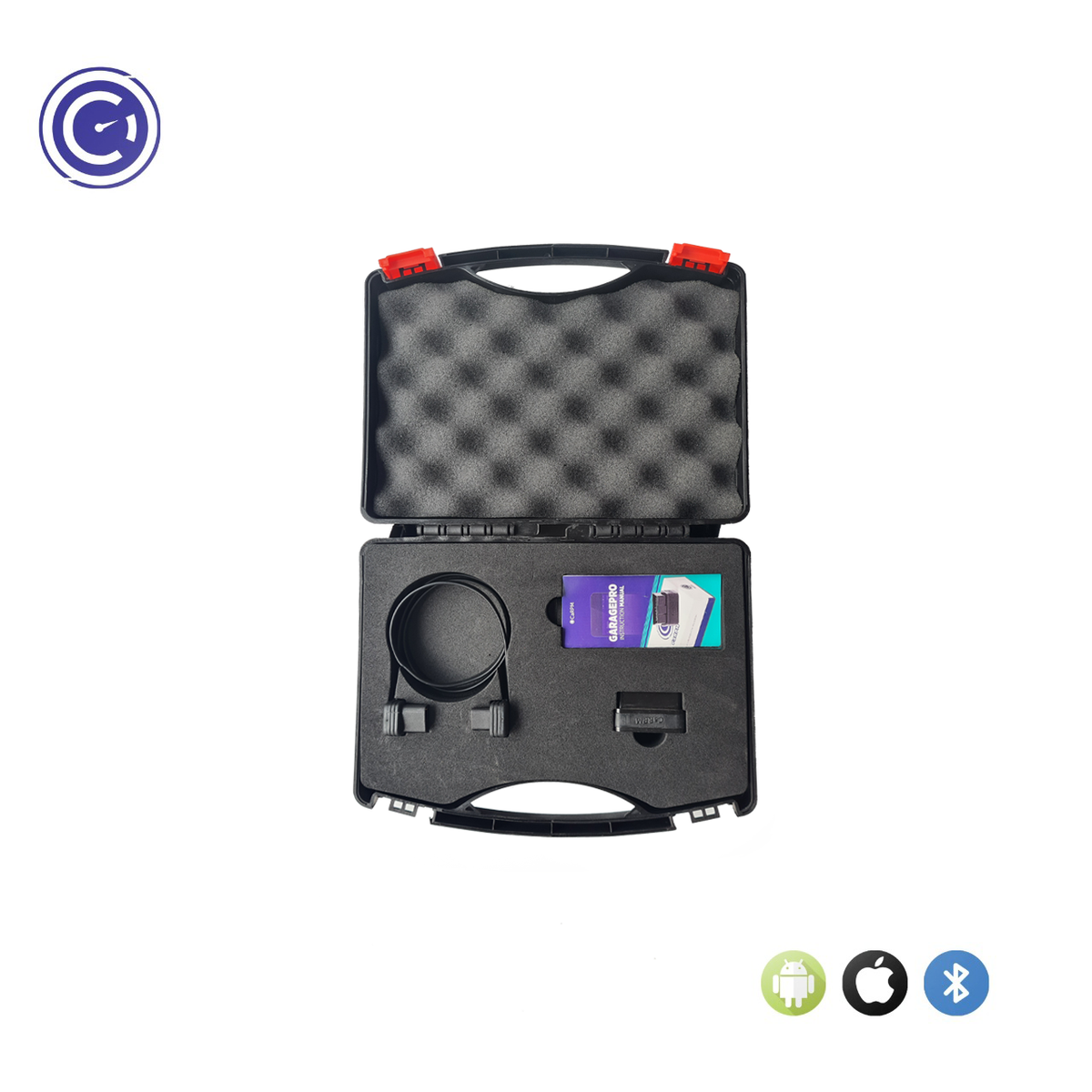

WHAT IS IN THE BOX
-

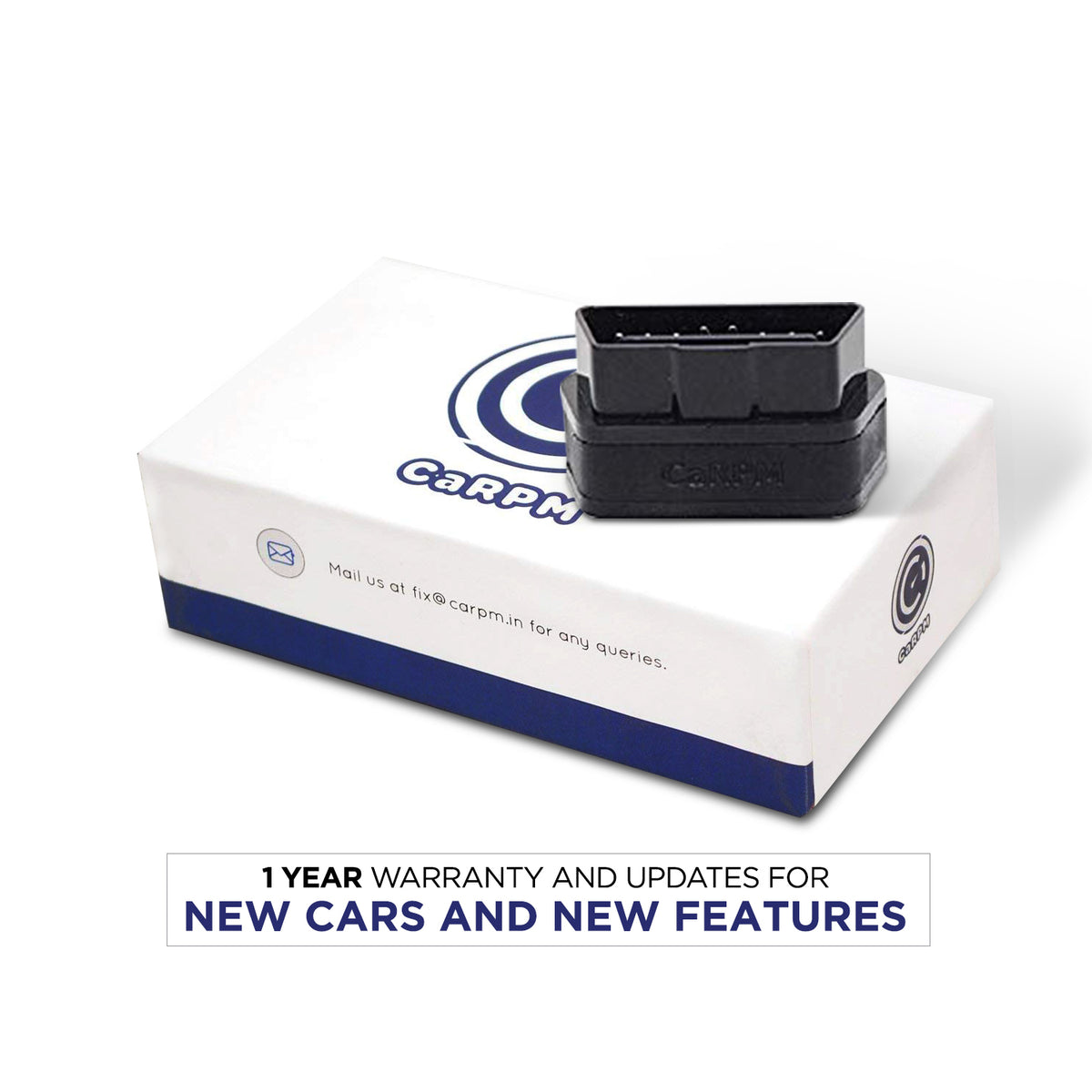

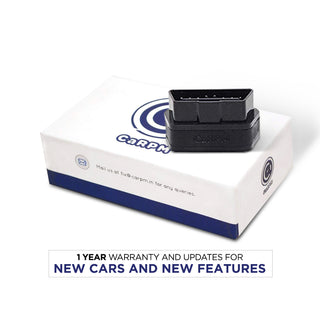

GaragePro Bluetooth OBD scanner
Full scanning — Engine, ABS, SRS, EPS, BCM and more.
-
GaragePro app subscription (Activation Code)
For the platform and validity you select above. Unlimited scanning, no cap on cars.
-
User manual
Printed setup and usage instructions.
SPECIFICATION
Specification
| Connection | Bluetooth, pairs with the GaragePro app |
|---|---|
| Vehicle system | 12V passenger vehicles. 24-volt commercial vehicles use a separate scanner. |
| Modules read | Engine, ABS, SRS, EPS, BCM, Transmission, HVAC, Instrument Cluster, Traction Control |
| Diagnostic modes | 01, 02, 03, 04, 05, 06, 07, 09, 0A |
| Scans and clears | Unlimited on every plan |
| App languages | English, Hindi, Arabic, French, Portuguese |
| Vehicle database | Updated from the GaragePro coverage record |
About this product
Features:
- Full scanning of all systems- Engine, ABS, SRS, EPS, BCM, etc.
- PDF with descriptions of fault codes
- Technical Assistance from our support team
- Module-wise scanning for quicker scans
- Unlimited scanning- no limit on number of cars you can scan.
- Live Data to read Speed, RPM, MAP, MAF, etc.
- Supports most cars post 2008. Specific features might not be supported in pre 2010 cars but most features are supported. Not sure about your car? Check your exact make, model and year — the answer is on the screen, with the control units and functions we have actually recorded for it.
- Available for both Android & iOS devices
- Validity of 1 year/3 Years from the date of purchase. A premium subscription is included with the scanner
Works with OBDII/EOBD/HDOBD/WWH-OBD standards, along with support for the following protocols:
- SAE J1979
- SAE J1939
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- ISO 9141-2 (5 baud init)
- ISO 14230-4 KWP (5 baud init)
- ISO 14230-4 KWP (fast init)
- ISO 15765-4 CAN (11-bit ID, 500 kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 kbaud)
- SAE J1939 CAN (29-bit ID, 250* kbaud)
- ISO 27145 protocols
Diagnostics Communication mediums supported: KWP2000
(K-Line, CAN TP2.0 and ISO-CAN), UDS (ISO-CAN)
Please email us on fix@carpm.in if you are a business and need your GSTIN to be included in the invoice for this order.
Country of origin of hardware: China
Country of origin of software: India
Note:
Features vary by make, model and year. Check your vehicle to see the control units and functions recorded for it.
SPECIAL FUNCTIONS, PUBLISHED IN FULL
Included on Advanced. Availability varies by vehicle — the compatibility check above returns the exact count for yours.
Every special function on Advanced
- Service / oil reset
- Electronic parking brake retract
- DPF regeneration
- Throttle body adaptation
- Injector coding
- Steering angle calibration
- Battery registration
- TPMS reset
- ABS bleeding
- Gearbox adaptation
- Suspension adjustment
- Turbo actuator learn
- Immobiliser status read
- Sunroof initialisation
- Window calibration
- Seat calibration
WHAT EACH PLAN UNLOCKS
What each plan unlocks
Coverage is identical across the plans. Only the rows below change.
| Lite | Standard | Advanced | |
|---|---|---|---|
| Vehicles | Two, chosen in the app | Unlimited | Unlimited |
| Modules | Every control unit on the vehicle | Every control unit on the vehicle | Every control unit on the vehicle |
| Scans and clears | Unlimited | Unlimited | Unlimited |
| Special functions | Not included | Not included | Included |
| From | From ₹3,499 | From ₹13,999 | ₹18,999 |
Product demo
Watch one fault, start to finish
A real car in a real garage: plug in, read the code, clear it, verify the light is out.
Shipping, returns and warranty
1-year replacement warranty
Faulty unit replaced, not repaired. One year from delivery.
7-day returns
Unopened or faulty, returned within seven days of delivery.
Phone and WhatsApp support
Monday to Saturday, 10 AM – 7 PM IST, on one number.
GST invoice
GSTIN on the invoice, issued on request with every order.
Activation code in the box
Ships with the device. Support activates it with you if needed.
+91 73530 07699 ·fix@carpm.in · Mon–Sat, 10 AM – 7 PM IST
Questions about this product
Which plan should a single-car owner buy?
Lite, unless you want the resets that finish a repair — a service reset after an oil change, an electronic parking brake retract before a brake job. Then Advanced.
Can I upgrade a plan later?
Yes. Support applies the difference against your existing activation.
Is the activation code reusable?
It pairs once to your plan. Keep the card — support needs it if you change phones.
Do special functions work on every vehicle?
Availability varies by vehicle. The compatibility check above returns the exact count for yours, from the coverage record.
What is not supported?
No ECU programming and no key coding. Injector coding is a special function and is included on Advanced.
Do I have to contact you before ordering?
No. Check your vehicle in the buy box above and order. That is the whole point of the check being on this page.
